CORRUGATED PROFILED ROOF SHEETING MACHINE

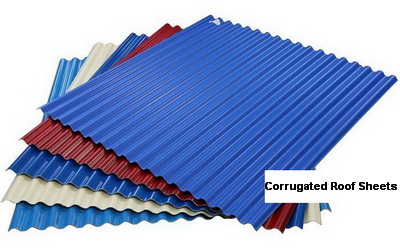

This metal roofing sheets making machine is an advanced metal roll former, which is manufacturing corrugated aluzinc iron & aluminium roof sheet with a high speed. This roof sheetings machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system. The prepainted & galvanised zinc steel or aluminum roof panels which made by this rollformer have neat external appearance, even ripples, high utilization and strong strength. Besides, this roof sheets corrugation machine can cooperate with its curving machine to fit your roofing design.
CHARACTER
It is really a new type of energy-saving and high-efficiency metal roof corrugation machine for corrugated zinc coated steel & aluzinc aluminum roof panel. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
MAIN PARAMETERS:
1. Material Thickness: 0.4mm to 0.7mm
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 4kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.
Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
If you want to get more information about this sinusoid profile roofing sheet roll forming machine, such as price, delivery time, payment and so on, please contact us by the following information:
Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
